Magnetron Sputtering Coating Machine For Sale

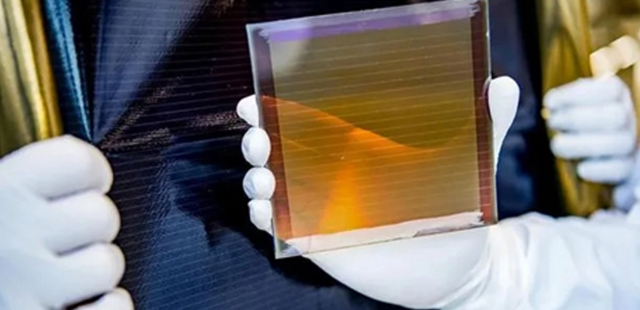

We can prepare single-layer and multi-layer films of various types, including metal films, dielectric films, semiconductor films, heat-resistant alloy films, hard films, corrosion-resistant films, and transparent conductive films. For instance, we are capable of fabricating perovskite hole transport layers, metal electrodes, and transparent conductive ITO film layers.

Different Types of Magnetron Sputtering Coating Machines

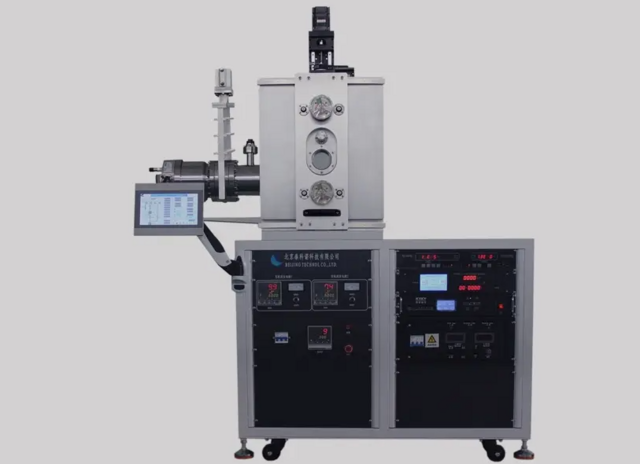

High Vacuum Magnetron Sputtering System, Magnetron Sputtering Machine JCP200

The equipment has a small volume, fast vacuum acquisition, powerful functions, and low operating costs; PLC touch screen control, easy to operate.

High Vacuum Magnetron Sputtering Deposition Coating Machine JCP350

The device is designed with integrated host and control, PLC touch screen control, easy to operate, and can complete single target independent sputtering.

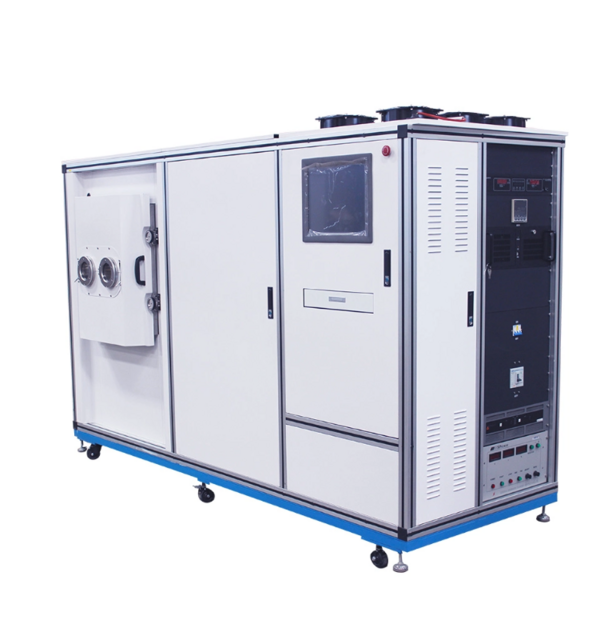

High Vacuum Magnetron Sputtering Coating Machine JCP500

Composed of vacuum system, vacuum measurement system, gas path system, PLC+touch screen control system, sputtering system, etc.

High Vacuum Magnetron Sputtering Coating Machine JCPY500

Used for scientific research and small-scale preparation of thin film new materials, it consists of magnetron sputtering chamber, wafer storage chamber, etc.

How Does the Magnetron Sputtering Coating Machine Work?

A magnetron sputtering coater operates by using a strong magnetic field to confine plasma close to the surface of a target material. When a high voltage is applied, ions from the plasma collide with the target, causing atoms to be ejected. These ejected atoms then travel through a vacuum chamber and deposit onto a substrate, forming a thin film. The process allows for precise control over the film's thickness and composition, making it ideal for applications in electronics, optics, and materials science. The use of a magnetic field enhances the efficiency and uniformity of the coating process.

What Thickness Target for Magnetron Sputtering?

When selecting the thickness of a target for magnetron sputtering, several factors must be considered, including the desired film thickness, deposition rate, and target material. Typically, target thickness ranges from 3 to 6 mm for most applications. Thicker targets (up to 10 mm or more) are used for high-power applications or extended sputtering runs to ensure uniform erosion and longevity. It's crucial to balance target thickness with the system’s power capabilities and cooling efficiency to prevent overheating and ensure consistent deposition. Consulting with the target manufacturer and considering the specific requirements of your sputtering system will yield the best results.

Established in 2003, Beijing Technol Technology Co., Ltd. specializes in the R&D, trial production, and manufacturing of advanced vacuum deposition machine and vacuum technology applications. As a high-tech enterprise, it integrates R&D, design, manufacturing, sales, and service. The company boasts a strong R&D team led by professors and PhDs, ensuring top-tier vacuum equipment products and holding multiple patents. Their product range includes various vacuum coater machine and high vacuum heat treatment furnaces, widely used in universities, research institutes, and enterprises. With over 2000 units in operation globally, their technology and services are highly acclaimed.
